DIGITAL MELTING KILN

DIGITALLY CONTROLED
ELECTRICAL METAL
MELTING KILN
for
GOLD - SILVER

£375.00 plus vat + carriage


ROHS CE approved

PRODUCT INTRODUCTION

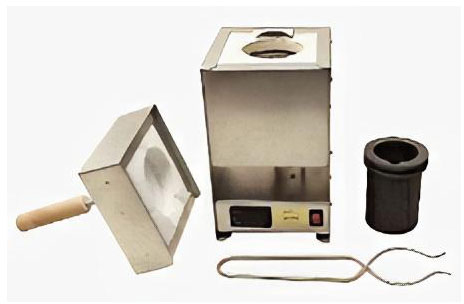

This R9D-100 digitally controlled, electrical metal melting kiln is especially designed to melt down up to 3000 Grams of PURE GOLD or any other metal with a CASTING point below 1100° such GOLD, SILVER, copper, brass, bronze, and their alloys. The R9D-100 kiln has a standard digital temperature controller and can reach and hold any single temperature between 20°C and 1120°C once settled. It means that when this kiln is connected to a power supply and is switched on, it will start to heat up gradually without stopping until a pre-settled temperature will be reached. The kiln is able to hold the required temperature until you will pre-set a different temperature or switch it off. The empty kiln reaches the temperature of 1130°C approximately in 60-90 minutes depending of the quantity and size of your metal pieces inside the graphite crucible. More metal (larger pieces) and more metal in the crucible means more heating time.
UK MANUFACTURED





TECHNICAL SPECIFICATIOS
MODEL: R9D-100-1130C ADJUSTED TEMPERATURE RANGE 0 C - 1130 C
INPUT: 240V ACCURACY: +/- 1 %
POWER: 1150 WATT INSULATION MATERIALS MUFFLE & CERAMIC FIBER
MAXIMUM TEMPERATURE 1120 C ESTIMATED CRUCILE WORKING CIRCLE (WITH A GRAPHITE PROTECTOR PAINT ) 20 GOLD MELTING PROCESS
MAXIMUM HEATING TIME 90 MINUTES CRUCBILE - EXTERNAL DIMS TD=74;BD=64;HIGH=95 MM
MATERIAL OF CRUCIBLE GRAPHITE MSSM CRUCIBLE — HOLE DIMS D=51; DEPTH=86 MM
VOLUME OF CRUCIBLE 3100 G PURE GOLD DIMESIONS OF KILN (no lid): 150 X 150 X 270(H)
CONTINUOUSLY WORKING TIME 2 HOURS WEIGHT: 3.8 KG
