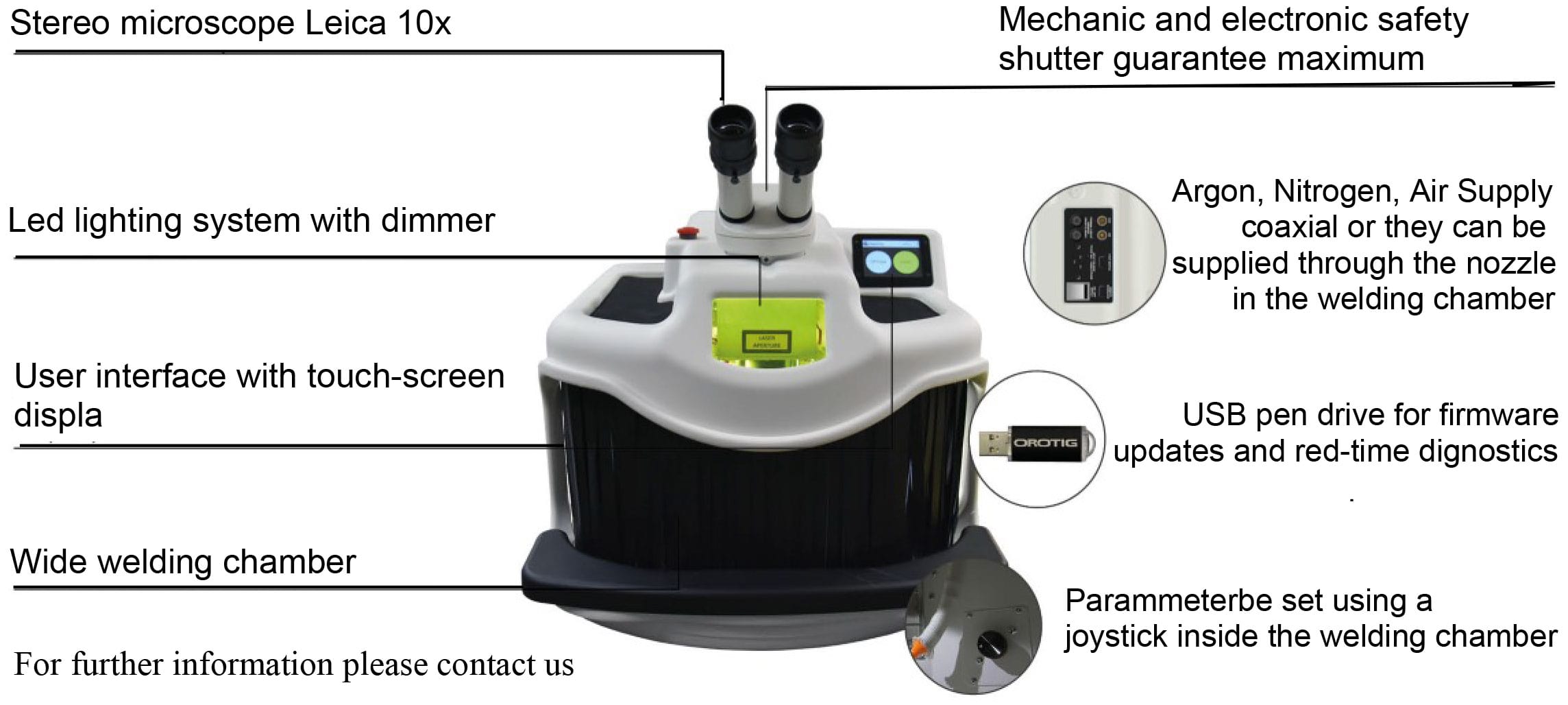

LASER WELDER - Evo White

LASER WELDER
Evo White 160 Joules

Desktop laser par excellence is now more powerful and performing simply UNIQUE.

VERY MUCH IDEAL FOR SMALL JEWELLERY WORKSOP AT AFFORDABLE PRICE
£7,950.00 plus vat

Lease Finance available: from £72.00 per week for 3 years




Specifications

MODEL
 EVO White
Crystal Type Nd: YAG 7 7 mm/1064 mm
Power Impulse time 130 J at 25 mms
Peak Power 7 Kw
Mean Power 70 W
Stero - Microscope 45’ with 10X and cross hair (Leica)
Frequency 15 Hz
Weight 32 Kg
Power Supply 115-230 VAC +/- 10% 50/60 Hz, 16 A
Laser spot weld From 0.3 to 1.5 mm
Controls External with 3.5” color touch-screen display, internal with joystick
Cooling Type liquid cooled (1 Lt) with forced ventilation

Country of Origin: Italy

Full 2 Years Warranty



The EVO series LASER welder is the world’s most reccognizable LASER for the Jewellery and dental industries, It’s main well known features are
