Technology suppliers to Jewellery Industry

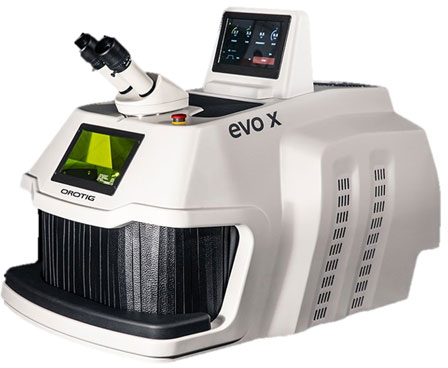

LASER WELDER EVO X

LASER Welder
EVO X 225 Joules
EVO X represents the new frontier of desktop laser welding machines; the most powerful and effective in its category combined with the most efficient cooling system and a revolutionary operating system capable of satisfying all the needs of modern industry.

£11,950.00 plus vat

Lease Finance Available: from £99.00 per week plus vat for 3 years


MODEL EVO X
CRYSTAL TYPE Nd:YAG 7 mm/1064 mm
POWER IMPULSE AND TIME 150 J at 25 mS
PEAK POWER 9.0 kW
MEAN POWER 75 W
FREQUENCY 20 Hz
WEIGHT 41 Kg

POWER SUPPLY 115-230 VAC +/- 10%, 50/60Hz, 16 A
LASER SPOT DIMENSION From 0.1- 2 mm
CONTROLS External with 7” color touch-screen display, Internal eith joystick
STERO - MICROSCOPE 45’ with10X and crosshair or LYNX
COOLING TYPE Liquid cooled (4 lt) with forced ventilation
DIMENSIONS 912 x 626 x 465 mm


Country of Origin: Italy

Full 2 Years Warranty



The new family of LASER welders EVO X represents a peculiar innovation, as well as the natural evolution, of the previous generation already a landmark in dental and jewellery sector.

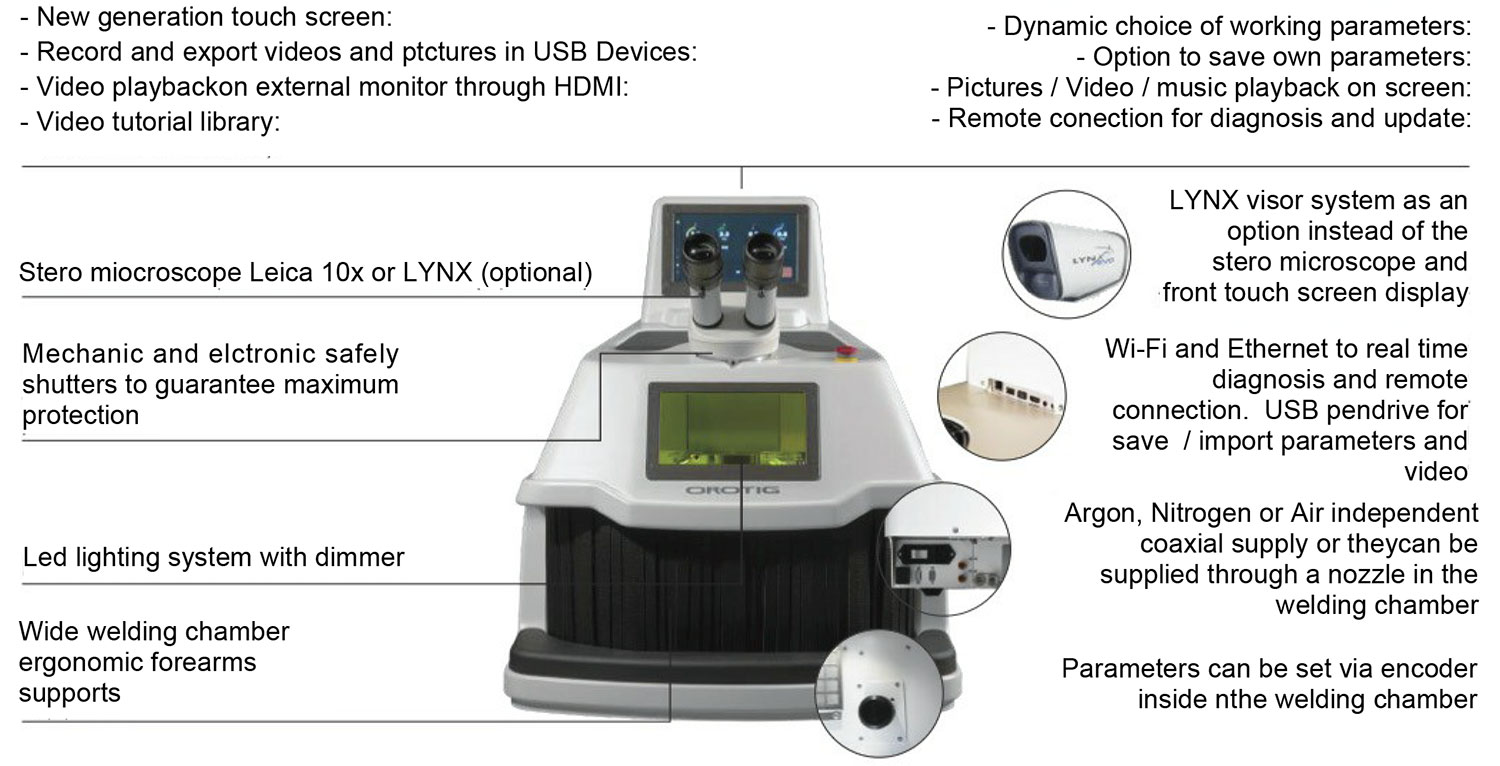

EVO X main features are:
