Magic-70 4 Axis

All in one CNC Engraving Machine

Milling - Engraving - Cutting Text

Patterns - Wax Modelling

£5,750.00 plus vat

Country of Origin Korea

Lease Finance Available from £54.00 per week plus vat for 3 years

MAGIC- 70 is a multi-functional cutting and engraving machine with 4 axes able to engrave on pendant, the inside of ring/bangle, the outside of ring/bangle with beautiful and indelible letters or patterns quickly and easily. It is good for 2D carving on wax, metal and is also good for cutting gold, silver, copper, brass, aluminum plate for name necklaces, etc.

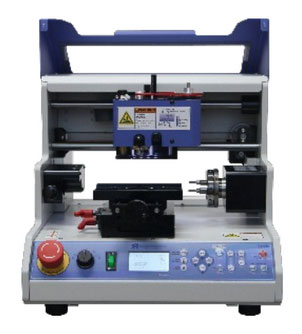

MAGIC-70

  • It’s used for engraving on every type of metal such as gold, silver, copper, stainless steel etc.
  • It cuts metal material such as gold, silver, copper, brass, aluminum etc.
  • It carves wax, chemical wood etc. in 3D.
  • It fastens most material without changing the clamp.
  • 3D carving of cylindrical wax for ring is supported.

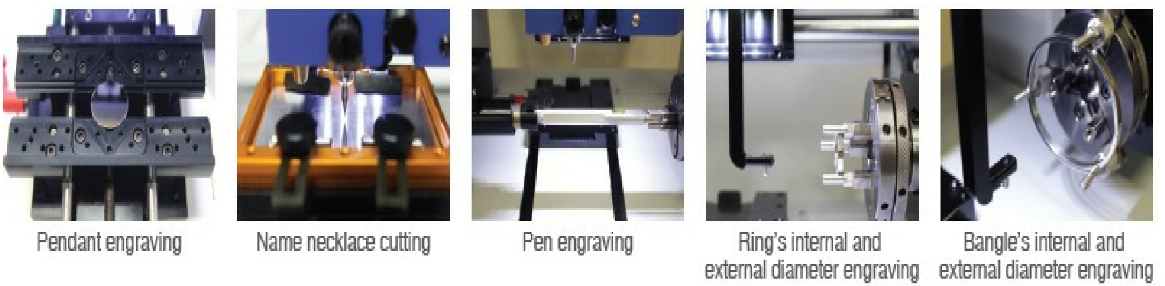

  • It can engrave on the both internal and external diameters of a ring/bangle.
  • A inside-ring/bangle tool(L-Tool) is built in.
  • Bangle engraving is available(Max diameter 93mm).
  • A larger graphic LCD screen shows machine status and guides machine use.
  • An RPM controller is equipped for spindle revolution speed change.
  • It’s compatible with 2D/3D CAD/CAM SW.
  • Photo Etching

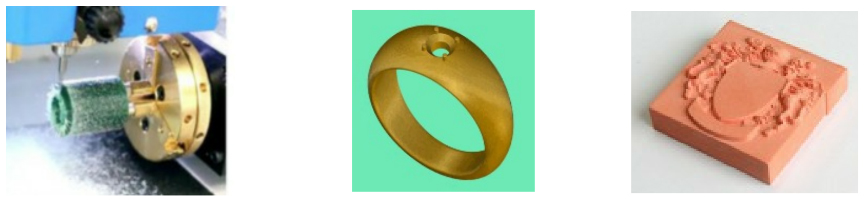

Magic 70: It’s being a multi-functional machine capable of carving wax in 3D by using the added 4th axis. One can create Jewellery Wax models such as Rings and other designs ready for casting.




Requirements:

DeskProto (CAM Program)

DeskProto is a 3D CAM program (CAM, Computer Aided Manufacturing). It imports 3D Geometry from any 3D CAD program, calculates CNC toolpaths and then writes NC program files for CNC milling machine in order to machine your model, mold or even your final product.

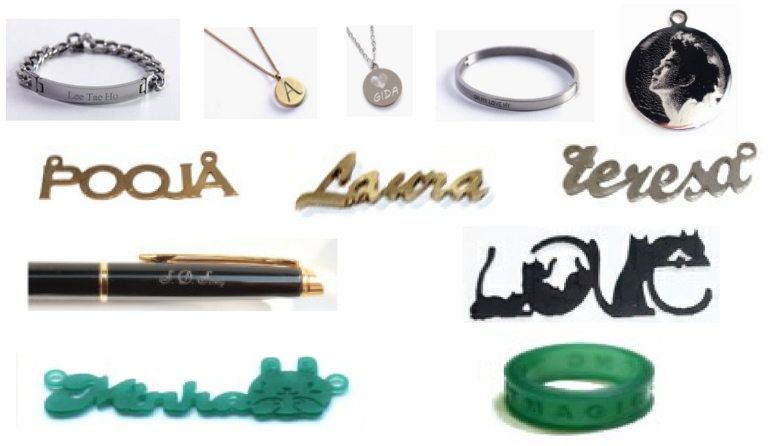

Some of the Examples
