LASER WELDER REVO SERIES

LASER Welder

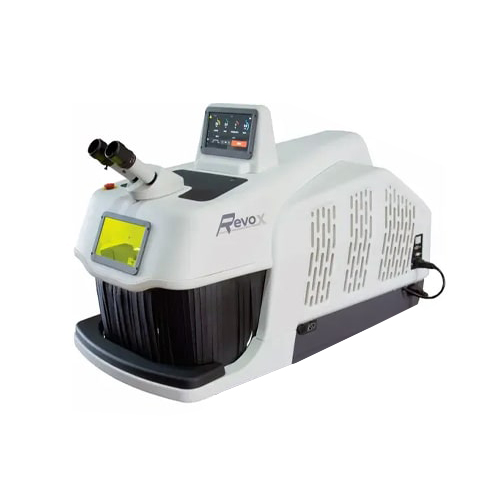

REVO x Plus 240 Joules

£16,650.00 plus vat with Base

£15,000.00 plus vat

Lease Finance Available: from £125.00 per week plus vat for 3 years
The R-evo series LASER welder combines the usual compactness of Orotig products with power and high performance for industrial manufacturing with the addition of air and water cooling of electronics.

The new development of the double capacitor board guarantees high welding and polishing speed, which also assists with Platinum, Silver and Gold 22-24 Kt welding. Special setting of electronics and optics to factilate the welding of particularly reflective metals such as Silver and Gold.


REVO X Plus TECHNICAL DATA


Country of Origin: Italy

Full 2 Years Warranty
CRYSTAL TYPE Nd:YAG
 7 mm / 1064 nm
POWER IMPULSE AND TIME
240 J at 25 mS
PEAK POWER
10.0 W
MEAN POWER
 120 W
FREQUENCY
 40 Hz
WEIGHT 75 Kg
POWER SUPPLY 230 VAC+/- 10%, 50/60Hz
LASER SPOT DIMENSION From 0.1 at 2 mm
CONTROLS External with 7” colour touch screen display, internal with joystick
STERO - MICROSCOPE 45” with 10X and cross hair
COOLING TYPE Liquid cooled (10 lt) with forced ventilation

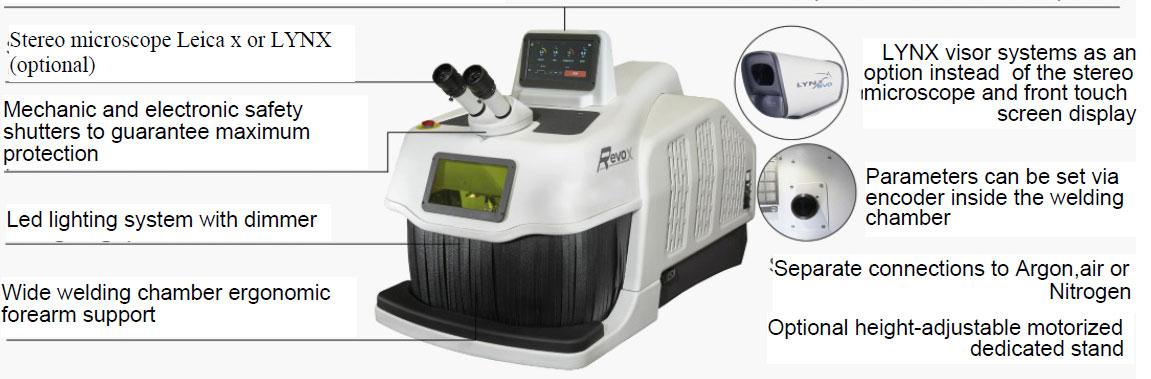

The new R-EVO X series of Laser-welders combine the original compactness of OROTIG machines with the power and high performance needed by industrial processes by improving features of the already excellent performance of earlier R-EVO/S series. Thanks to Ethernet and WI-FI connectivity, R-EVO X fully eases tool-machine integration into ERP industrial systems and to remote diagnostics. Main features are as follows:
  • New generation IPS with capacitive TFT interface
  • Possibility to save pictures / videos in USB key or in local memory
  • Screening live images to an auxiliary external monitor via HDM
  • Possibility of screening video tutorials
  • Dynamic selection of working setting based on actual job and type of metal getting intervened
  • Possibility of saving personally-set working parameters
  • Possibility to screen externally channeled picture/video/music/texts media means
  • Telemetry for remote assistance and updates
