Price: £ 675.00 + vat and carriage |
| |
|
|
|
THIS IS A CHAIN PLATING UNIT WITH 10-A RECTIFIER FOR PLATING TWO CHAINS AT A TIME. MAXIMAL LENGTH OF EACH CHAINS IS 700 MM. CAN BE USED ALSO FOR CLEANING AND PLATING ANY OTHER TYPE OF OBJECTS WITH SUITABLE DIMENSIONS.even RINGS and PENDENTS FREE ONLINE SUPPORT ON HOW TO USE THIS UNIT. |
| |
|
|
|
| |
|
|
|
Technical Specifications |
|
|
|
- Input: 110 - 250 V AC Rectifier Output: 1 V - 12 V / 20 Amp
- Digital 50 Ampere/Volt meter on front
- Working Time: 24/7 - Motors X 2 - Estimated RPM - 6
- One movable 50-Watt glass heating elements with a thermostats with Off/ON switch
- Air agitation system with a clear PVC hose with internal air compressor for high quality of coating
and for saving plating time and chemicals
- Set of anodes for cleaning, gold and silver plating purposes
- 2 circular plastic tanks with dimensions (mm): (100Dx140(H)) for cleaning and rinsing solutions
- Beige colour polypropylene plastic body (acid’s resisted) for your safety
|
| UK Manufactured Length of chaines 100 - 700 mm Width of chains 1 - 15 mm |
 |
 |
 |
 |

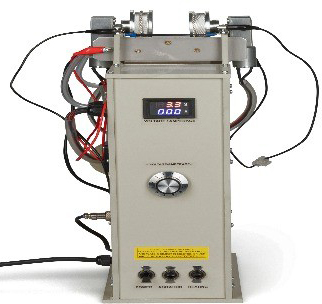

| Front View |

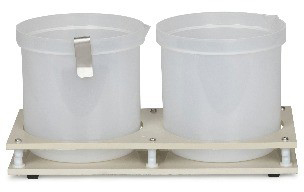

2 circular plastic tanks Cleaning,Plating or Rinsing |
Glass Heating Unit |
Top View Tank to hold Plating or Cleaning Solutions |
|
 |

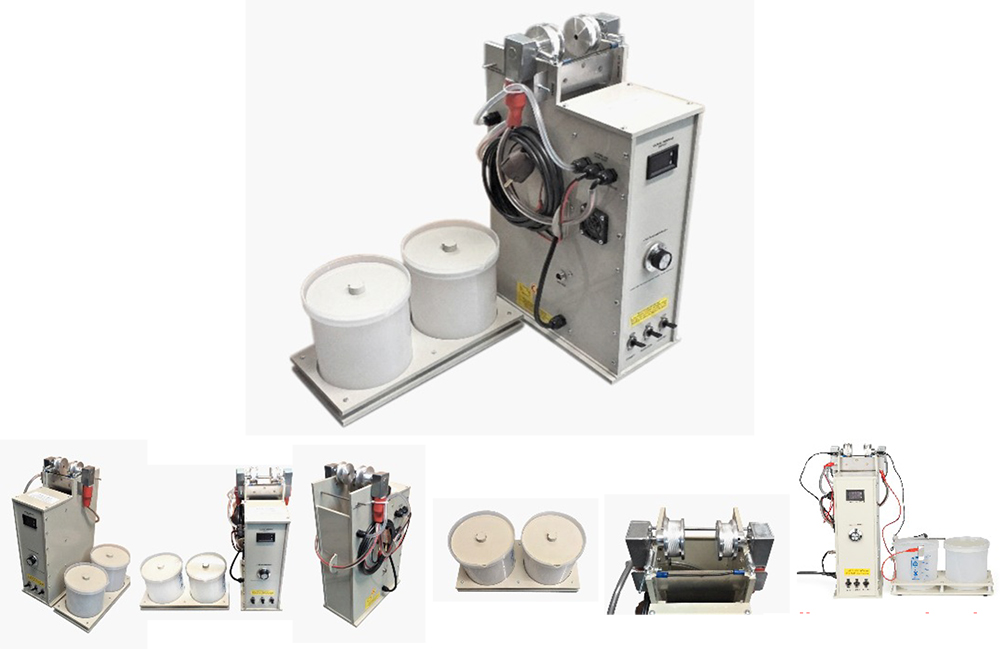

| Fully set up when in use |
| |
|
|
|
